Integrated Joint Module
Powerful Small Cannon, Born for Combat
L1 Mass-Production Robot Joint
Exclusive Smart Production Line

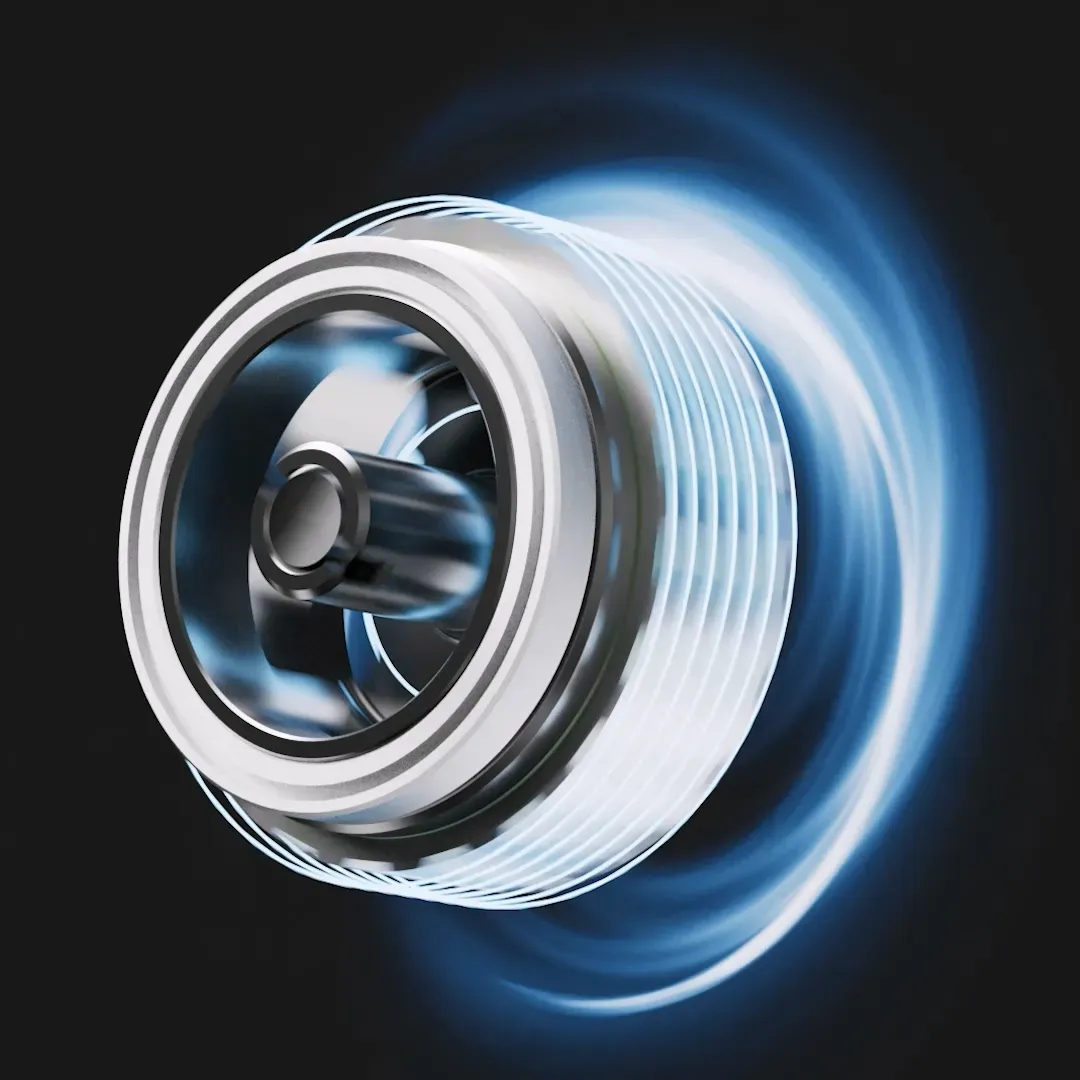

Achieving 48 N·m peak torque output within a compact size, weighing only 520g, with a peak torque density of up to 92.3 Nm/kg, reaching an industry-leading level.
Equipped with automated professional equipment, balancing production efficiency and multi-type adaptability, providing reliable delivery assurance for core component supply.
The P65 joint adopts a highly integrated design, integrating dual encoders, a frameless torque motor, and a planetary reduction drive into one unit.
The dual encoders significantly improve system control accuracy and response reliability, while the frameless motor combined with heat dissipation technology ensures long-term continuous operation.
The self-developed unicorn alloy gear planetary reducer greatly improves load durability while reducing weight, adapting to high-intensity work in multiple scenarios. The outer shell is made of high-reliability die-cast aluminum alloy material, passing millions of impact tests, with a stable and durable structure.
Supports IP54 protection level (through adaptation with the overall design, joint protection level can reach IP55), combined with anti-corrosion surface treatment technology, fearless of dust, splash water, and complex environmental challenges, ensuring stable operation of joints under various working conditions
| File name | Release date | Action |
|---|---|---|
PDF
CHAMP Series Joint Module Parameter Sheet
|
2026-05-18 | Download (2 M) |
1. The protection level only applies to the sealed state of the rear cover circuit board; the conventional non-sealed state does not have IP54 protection. When adapted to the overall machine design, the protection level of key points can reach IP55.
2. All parameters are tested under laboratory conditions. Product parameters may vary with different configurations and product updates. Please refer to the specific delivery parameter table and the actual product.
